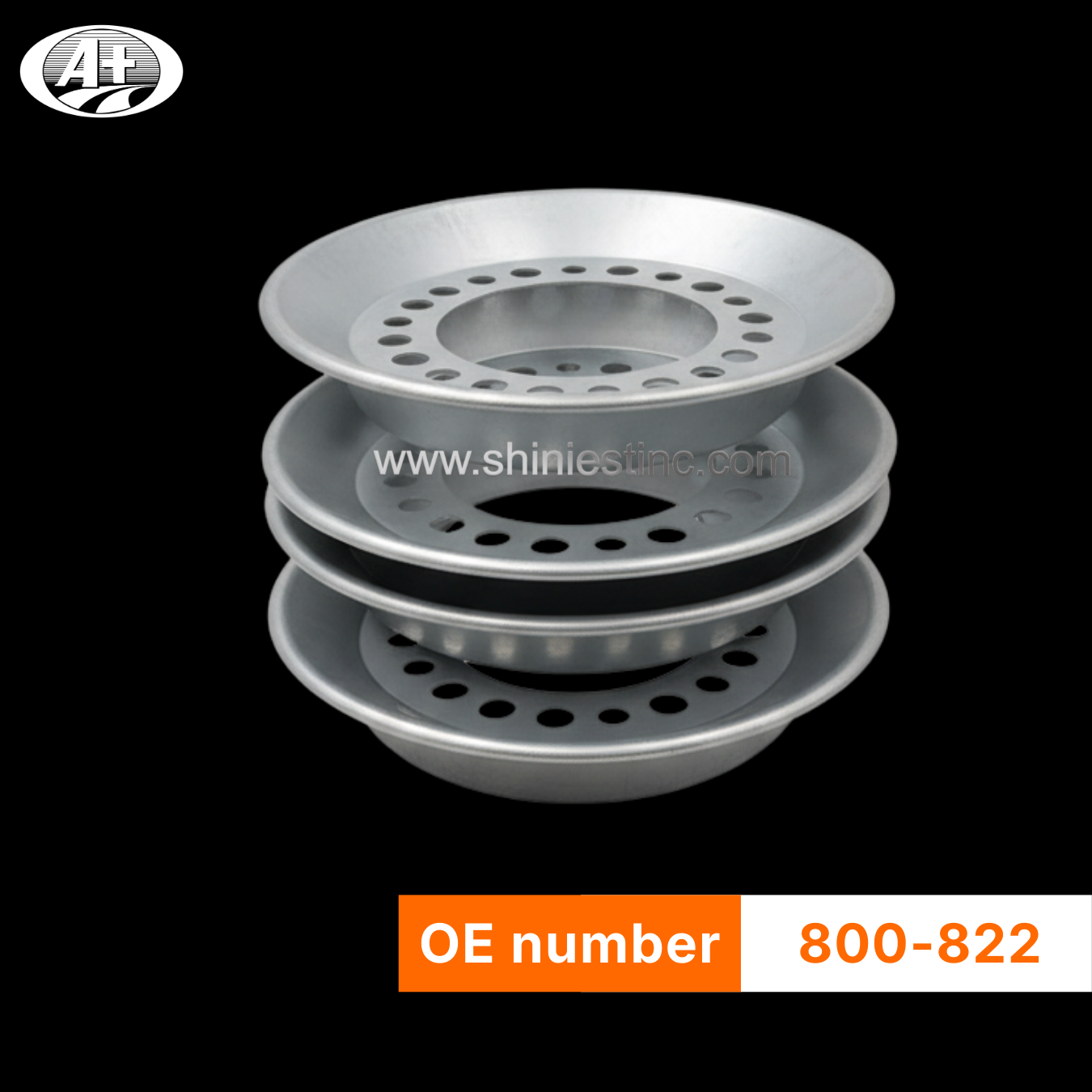

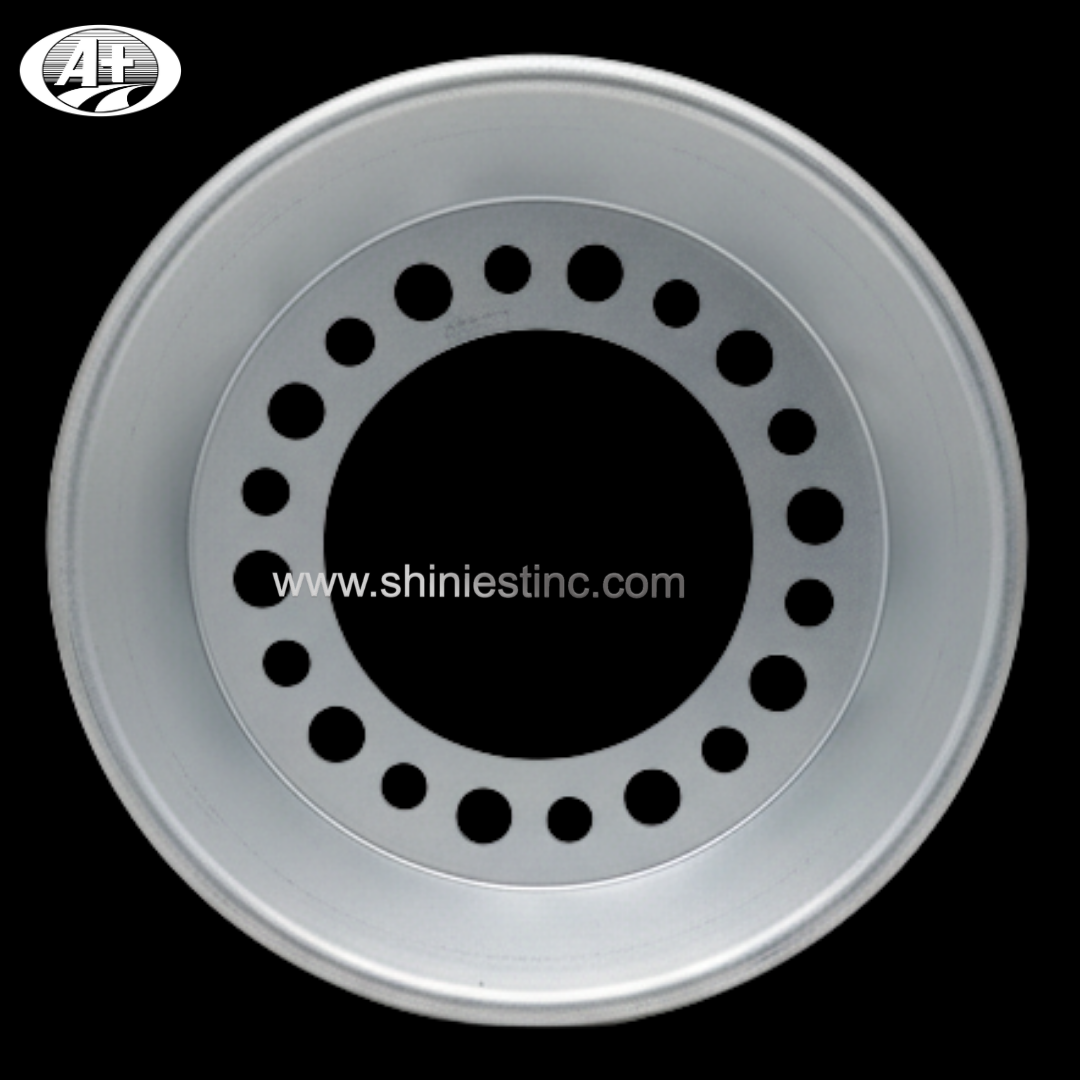

22.5” - 24.5” Heavy Duty Truck Wheel Balancer Set OE 800-822

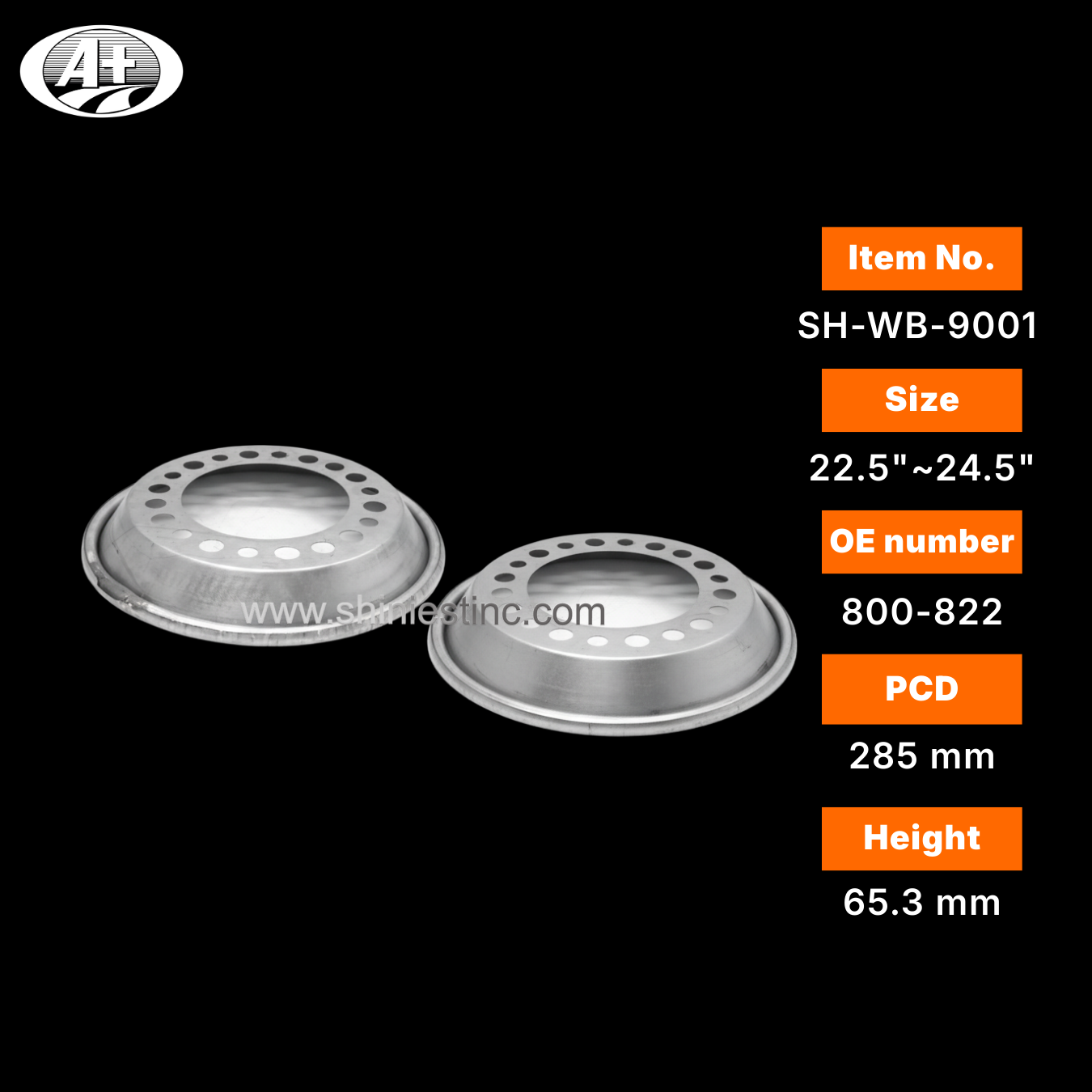

Product No : SH-WB-9001
Size : for 22.5"~ 24.5" U.S.A. Heavy Duty Trucks
Fitment: (Universal) for American trucks/buses
OE Number : 800-822

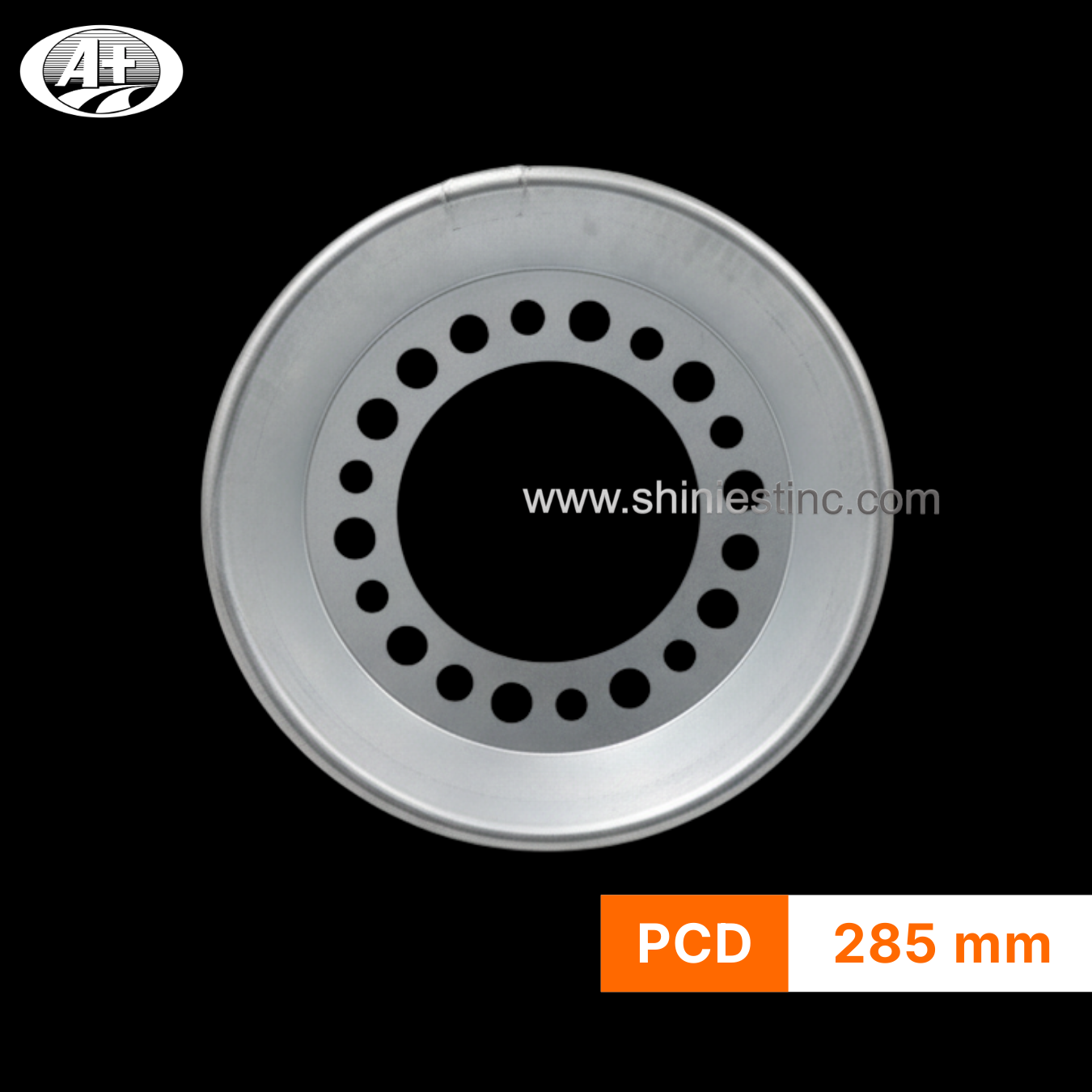

PCD : 285.3 mm
Bottom Outside Diameter : 359.8 mm

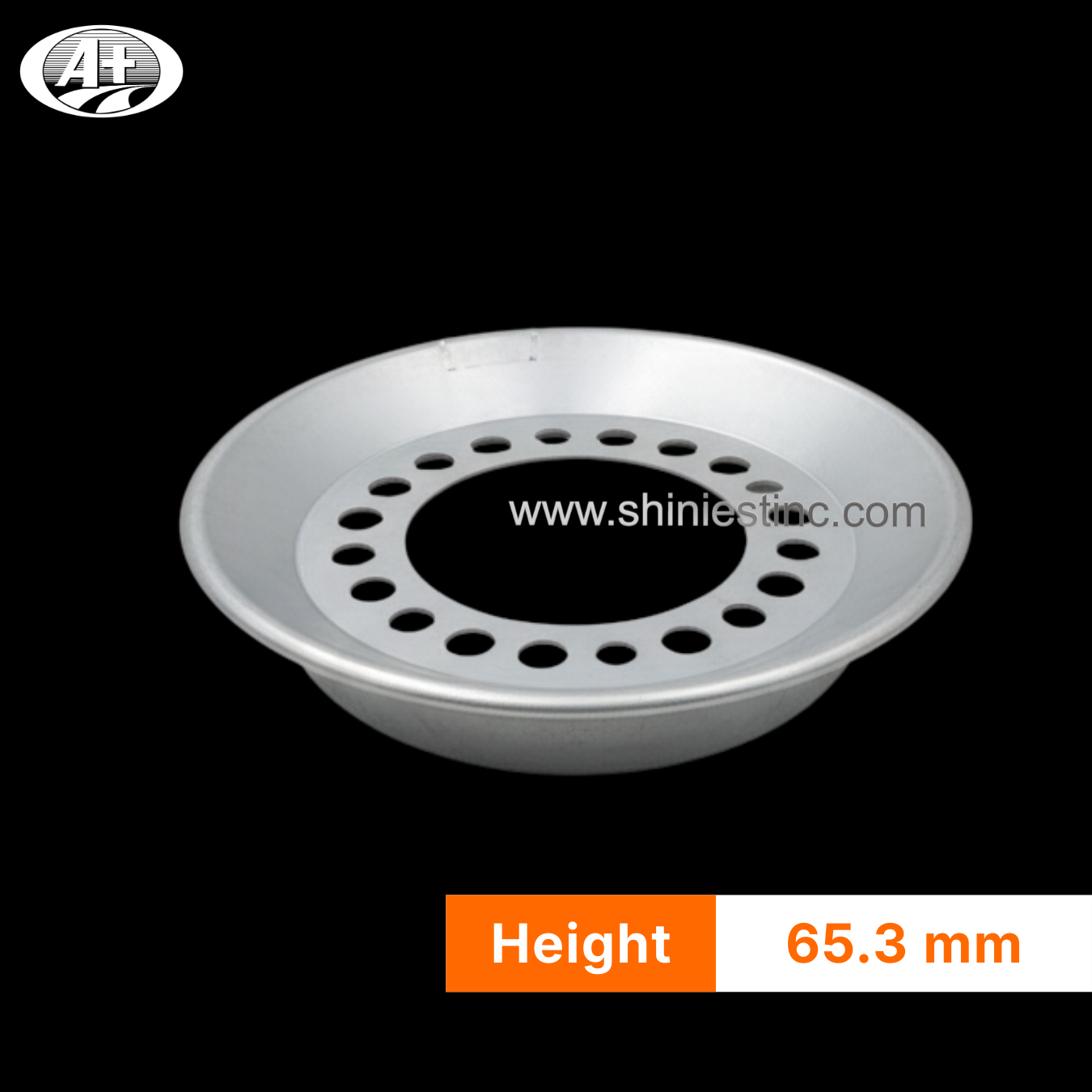

Total Height : 65.3 mm
Features
Description
In the competitive landscape of logistics and heavy transportation, tire maintenance represents one of the most significant operating costs for fleet managers. Excessive vibration caused by unbalanced wheels not only accelerates tire wear but also increases fuel consumption and driver fatigue. Our premium 22.5-24.5 Inch Heavy Duty Truck Wheel Balancer Set (OE 800-822) is engineered to solve these challenges, offering a continuous active balancing solution for commercial vehicles.
Designed specifically for the rigorous demands of the North American market, this Truck Wheel Balancer Set utilizes advanced centrifugal technology to automatically adjust to the changing balance points of the wheel assembly while the vehicle is in motion. Unlike traditional lead weights that remain static, our Heavy Duty Balancer Set adapts dynamically, ensuring a smooth ride throughout the entire lifespan of the tire. Whether you are operating a 22.5 Inch Balancer Set configuration for standard trailers or a 24.5 Inch Balancer Set for larger heavy-haul applications, this system provides a maintenance-free solution that significantly reduces irregular tread wear.

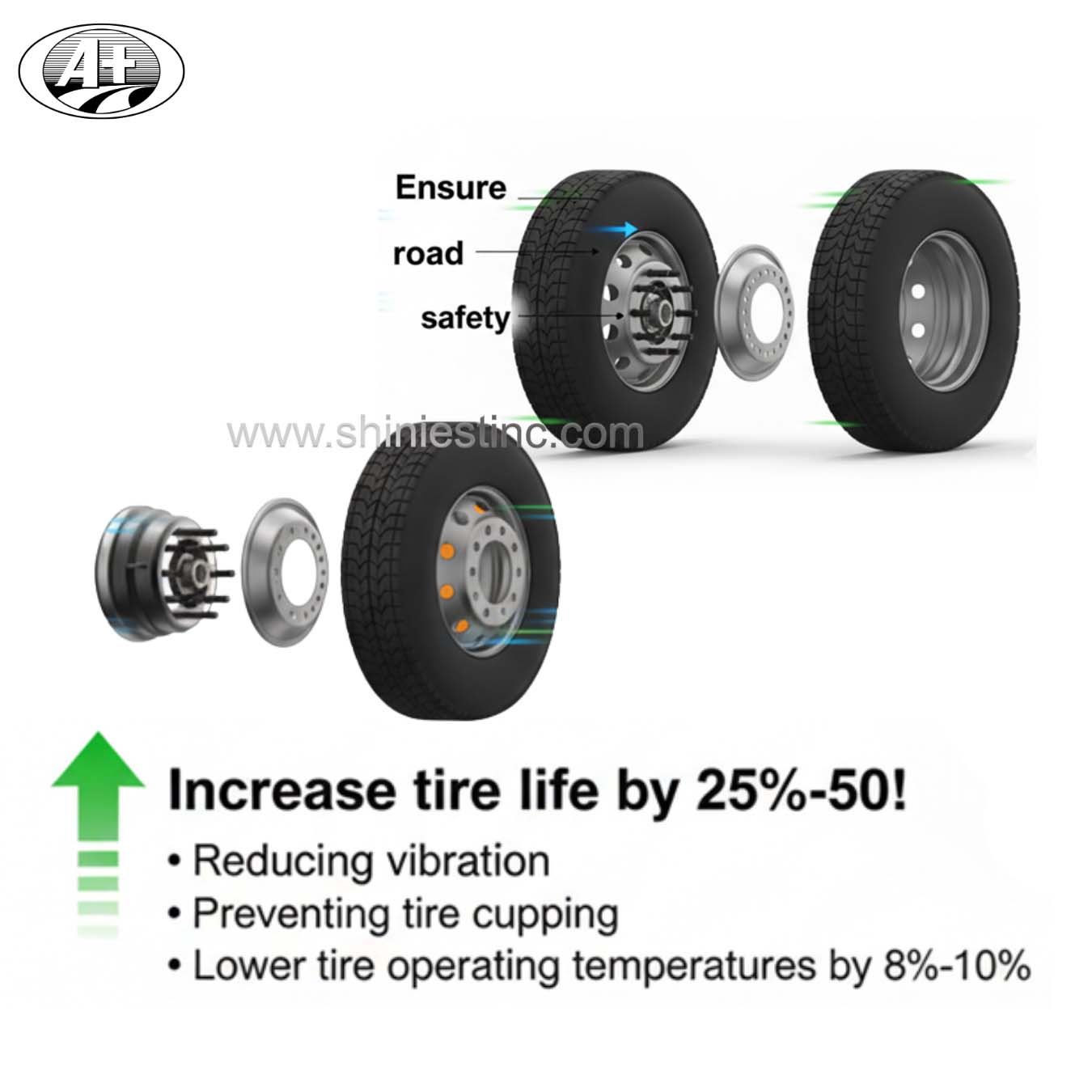

By installing a high-quality Commercial Truck Balancer Set, fleet operators can extend tire life by up to 25% and improve fuel efficiency. Our product is compatible with major US truck specifications, making it an essential upgrade for both Steer Axle Balancer Set and Drive Axle Balancer Set applications. With the reliability of OE standard 800-822, we provide a robust, industrial-grade solution that keeps your fleet moving efficiently.
| OE number | PCD | Max Outside Diameter | Bottom Outside Diameter | Total Height |
| 800-822 | 285.3 mm | 477 mm | 359.8 mm | 65.3 mm |
| 800-820 | 285.12 mm | 477 mm | 354 mm | 57.5 mm |
Product Specification and Advantages
The following table outlines the technical specifications and operational benefits of our Tire Wheel Balancer Set, designed to meet the high standards of US heavy-duty transportation.
| Feature | Description |
| Product Name | 22.5-24.5 Inch Heavy Duty Truck Wheel Balancer Set |
| OE Reference | 800-822 (Direct fit for standard US heavy trucks) |
| Size Compatibility | Adjustable fit for 22.5 Inch and 24.5 Inch wheel assemblies |
| Material | High-grade galvanized steel for corrosion resistance and durability |
| Balancing Type | Dynamic centrifugal balancing (active adjustment while driving) |
| Application | Suitable for Steer Axle, Drive Axle, and Trailer Axles |
| Key Benefit | Reduces tire cupping, extends tread life, and lowers fuel consumption |
| Installation | Bolt-on design utilizing existing wheel nuts (No specialized calibration required) |
| Target Market | US Logistics Fleets, Aftermarket Parts Distributors, OEM Assembly |
FAQ Section
Q1: How does this US Truck Balancer Set differ from traditional lead weights?
A1: Traditional weights are static and only balance the tire at the time of installation. Our Wheel Hub Balancer Set uses a dynamic active balancing system (often utilizing internal moving mass or beads) that continuously adjusts as the wheel rotates. This means the wheel remains balanced even as the tire wears down or picks up debris, providing superior long-term performance compared to static weights.
Q2: Is this set compatible with both steer and drive axles?
A2: Yes, this product is versatile. It serves effectively as a Steer Axle Balancer Set to reduce steering wheel vibration and driver fatigue, and also as a Drive Axle Balancer Set to prevent suspension wear and tear. It is fully compatible with standard 22.5" and 24.5" wheels commonly found on US heavy-duty trucks.
Q3: Does the installation of the Balancer Set require special tools?
A3: No complex tooling is required. The Truck Wheel Balancer Set is designed for easy installation, typically mounting between the wheel and the hub or on the exterior face using existing studs. It is a "install and forget" solution that requires no ongoing maintenance or re-calibration.
Q4: What is the expected ROI for a fleet using this Heavy Duty Balancer Set?
A4: Most fleets report a return on investment within the first year of use. By extending tire life by 20-25% and improving fuel economy by reducing rolling resistance, the Commercial Truck Balancer Set significantly lowers the cost per mile (CPM) for large-scale logistics operations.
Packing Method
-
2 pcs / box (size 49 X 48.5 X 15.5 cm)
-
3 boxes / CTN (size 51 X 51 X 48 cm)
