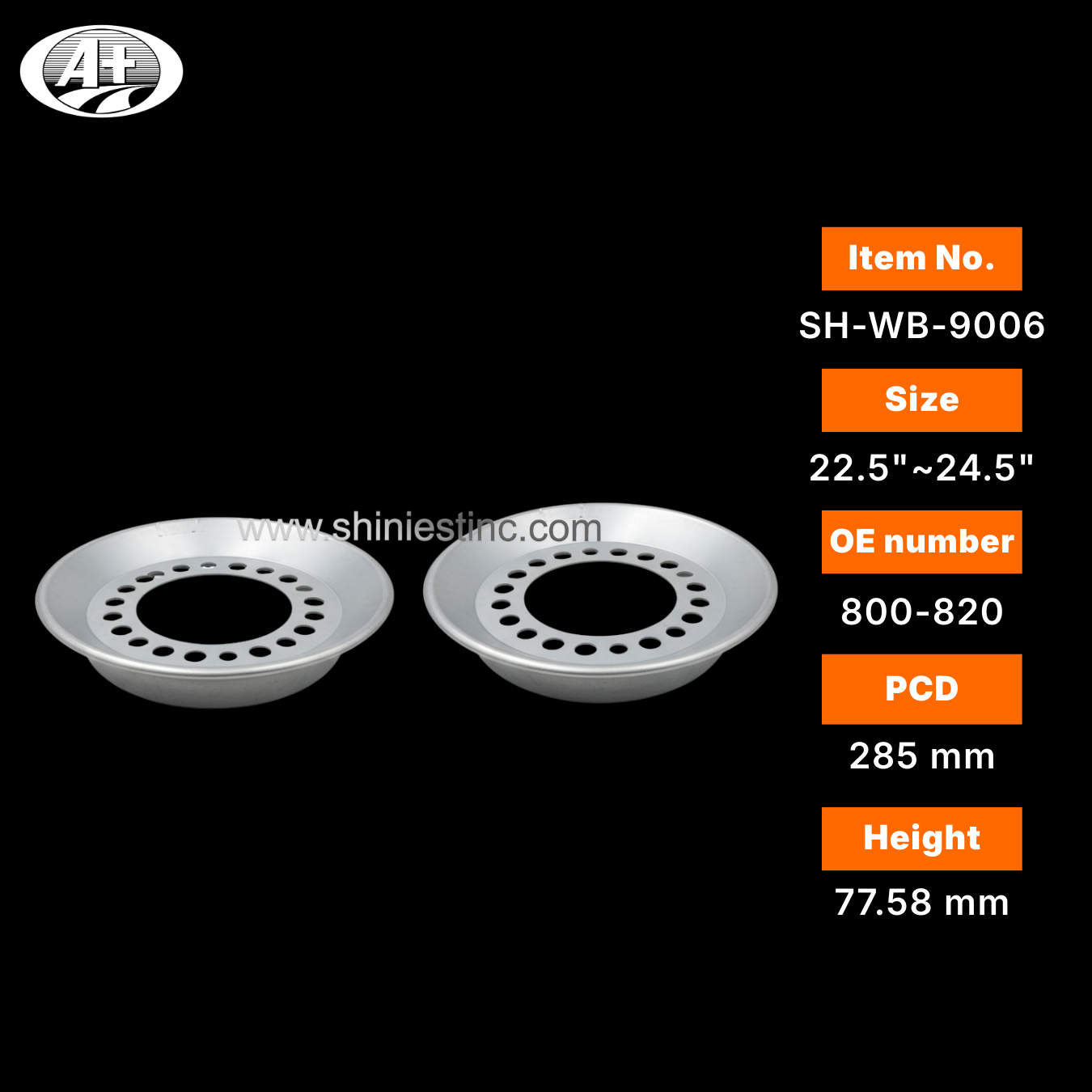

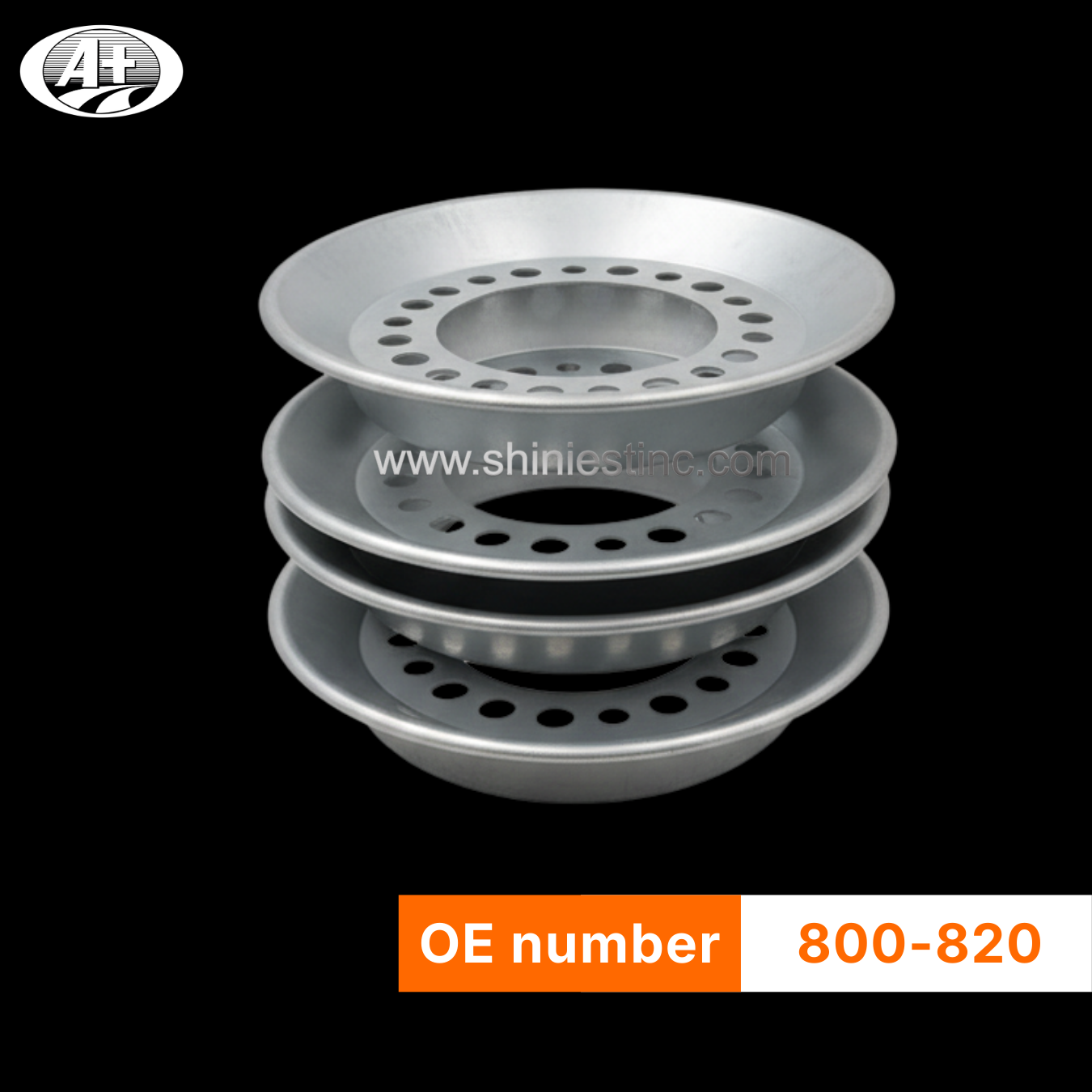

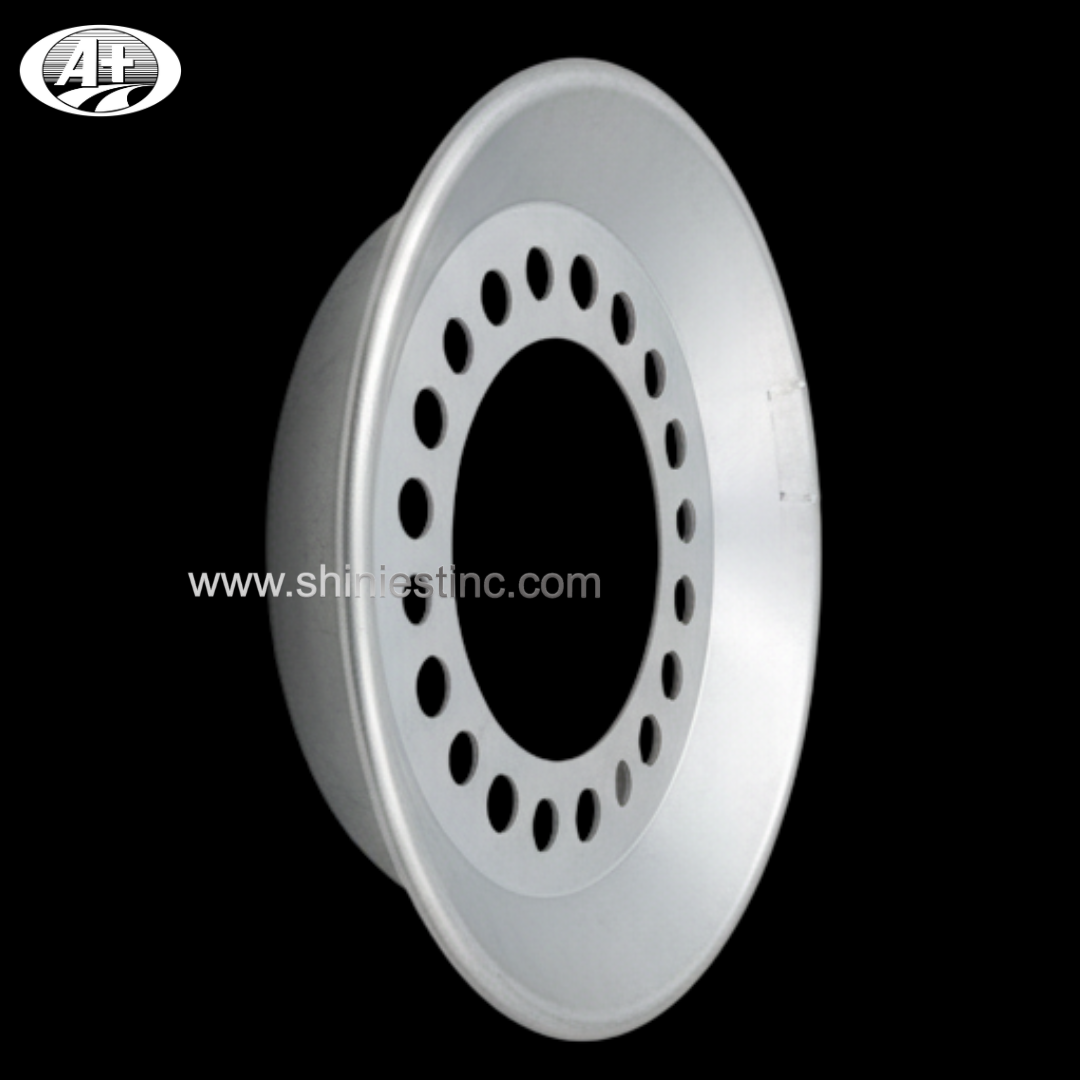

OE 800-820 22.5-24.5 Inch Heavy Duty Truck Wheel Balancer Set

Product No : SH-WB-9006

Size : for 22.5"~ 24.5" U.S.A. Heavy Duty Trucks

Fitment:  (Universal) for American trucks/buses
OE Number : 800-820
PCD :  285.12 mm
Bottom Outside Diameter : 354 mm

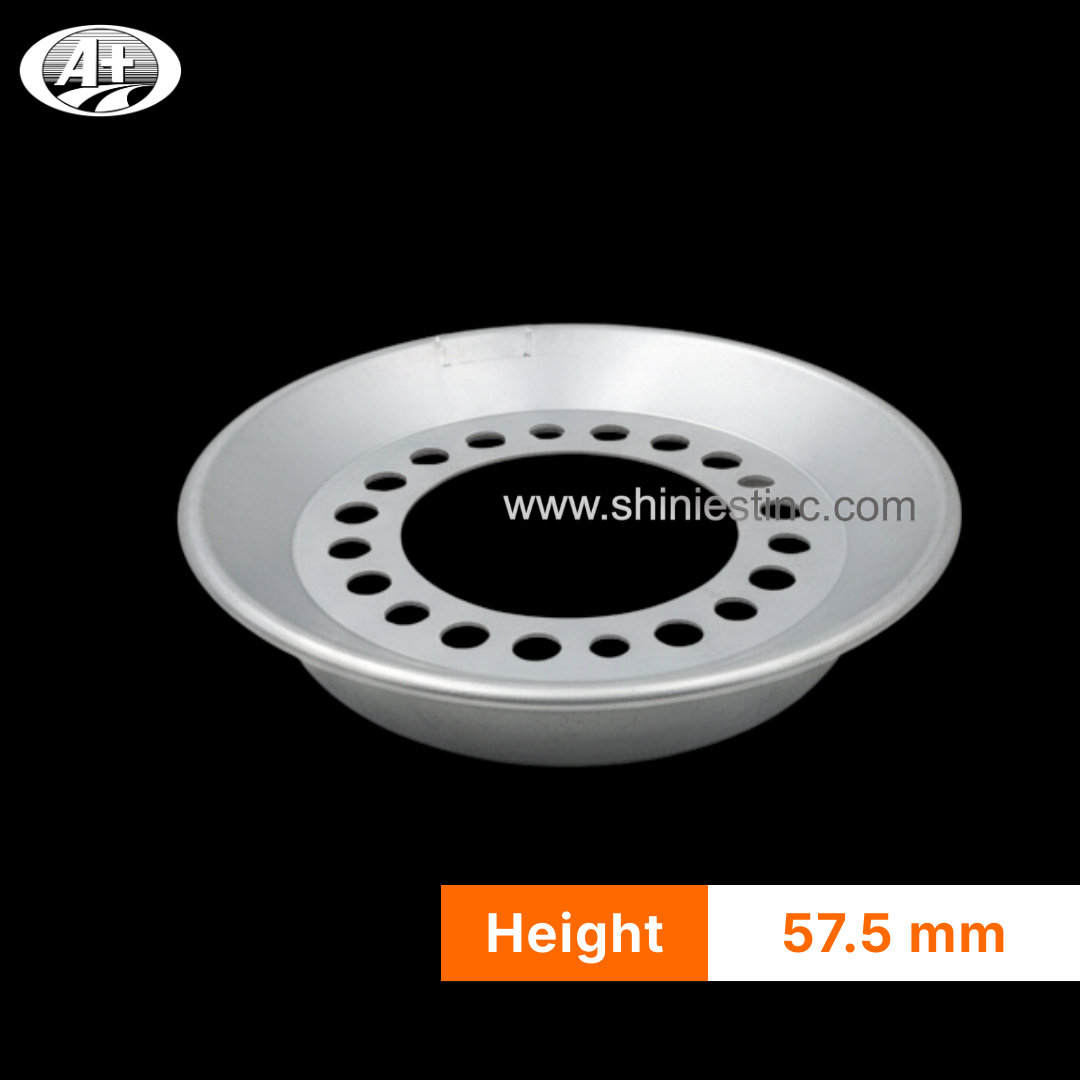

Total Height :  57.5 mm

Features

Description

For long-haul logistics carriers and heavy-duty fleet operators, wheel vibration is a silent profit killer. It not only accelerates tire wear but also contributes to mechanical stress on suspension components and driver fatigue. Our 22.5-24.5 Inch Heavy Duty Truck Wheel Balancer Set (OE 800-820) is engineered to address these critical issues, offering a robust, industrial-grade solution that ensures road safety.

Data shows that utilizing our high-performance Truck Wheel Balancer Set can increase tire life by 25% to 50%. Unlike temporary balancing methods, this system continuously neutralizes imbalance caused by uneven road conditions. By lowering tire operating temperatures by 8% to 10%, it effectively prevents heat buildup-one of the primary causes of tire blowouts. Designed specifically for the US Truck Balancer Set market, this product fits seamlessly onto 22.5 Inch and 24.5 Inch configurations, making it a versatile choice for mixed fleets.

Investing in this Heavy Duty Balancer Set is a strategic move for maintenance managers. It eliminates the need for repetitive static balancing services and effectively prevents tire cupping. Whether applied as a Steer Axle Balancer Set or a Drive Axle Balancer Set, the OE 800-820 model delivers consistent performance, translating directly to lower operating costs per mile.

OE number	PCD	Max Outside Diameter	Bottom Outside Diameter	Total Height
800-822	285.3 mm	477 mm	359.8 mm	65.3 mm
800-820	285.12 mm	477 mm	354 mm	57.5 mm

Product Specification and Performance Data

The table below details the technical attributes and proven performance metrics of our Wheel Hub Balancer Set, highlighting the significant efficiency gains for fleet operations.

Specification	Details
Model Name	22.5-24.5 Inch Heavy Duty Truck Wheel Balancer Set
OE Number	800-820 (Compatible with US heavy-duty standards)
Fitment Range	Universal fit for 22.5 Inch and 24.5 Inch tubeless wheels
Tire Life Extension	Increases tire life by 25% - 50%
Temperature Control	Lowers tire operating temperatures by 8% - 10%
Core Function	Reduces vibration, ensures road safety, prevents tire cupping

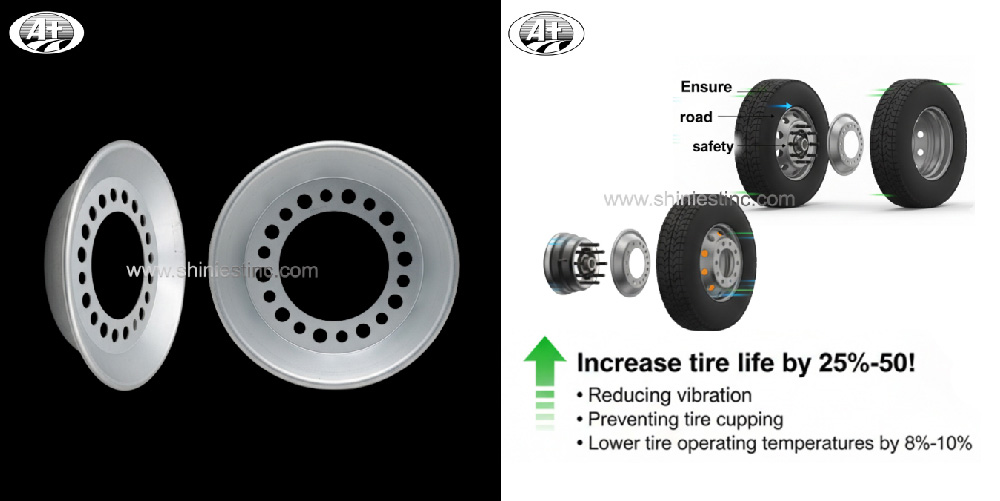

Installation	Mounts between wheel assembly and hub (as shown in diagram)
Primary Application	Steer Axle and Drive Axle vibration dampening
Main Benefits	Minimizes uneven tread wear, improves fuel efficiency

FAQ Section

Q1: How does the Balancer Set contribute to road safety?
A1: By dynamically balancing the wheel assembly, the Truck Wheel Balancer Set significantly reduces vibration. This ensures better tire contact with the road surface, improving traction and braking performance. Additionally, by lowering tire operating temperatures by 8%-10%, it reduces the risk of overheating and blowouts during long-haul trips.

Q2: Can this product really extend tire life by up to 50%?
A2: Yes. The primary cause of premature tire disposal is irregular wear (cupping) caused by imbalance. By continuously stabilizing the wheel, our Heavy Duty Balancer Set prevents these wear patterns from forming. Field data indicates a lifespan increase of 25% to 50%, depending on road conditions and load types.

Q3: Is the installation complicated?
A3: No. As illustrated in our product diagram, the Commercial Truck Balancer Set is designed to be installed directly between the wheel hub and the rim. It utilizes the existing wheel studs, requiring no special modification to the vehicle, making it a simple yet effective upgrade for any heavy-duty truck.

Packing Method

2 pcs / box (size 49 X 48.5 X 15.5 cm)
3 boxes / CTN (size 51 X 51 X 48 cm)
